► Established in 2009 as part of the ONE51 group, Protech Plastics Containers produces, among other innovative packaging, the cylindrical bocans in sizes 2,5L and 5L. Click here to see the post.

b1

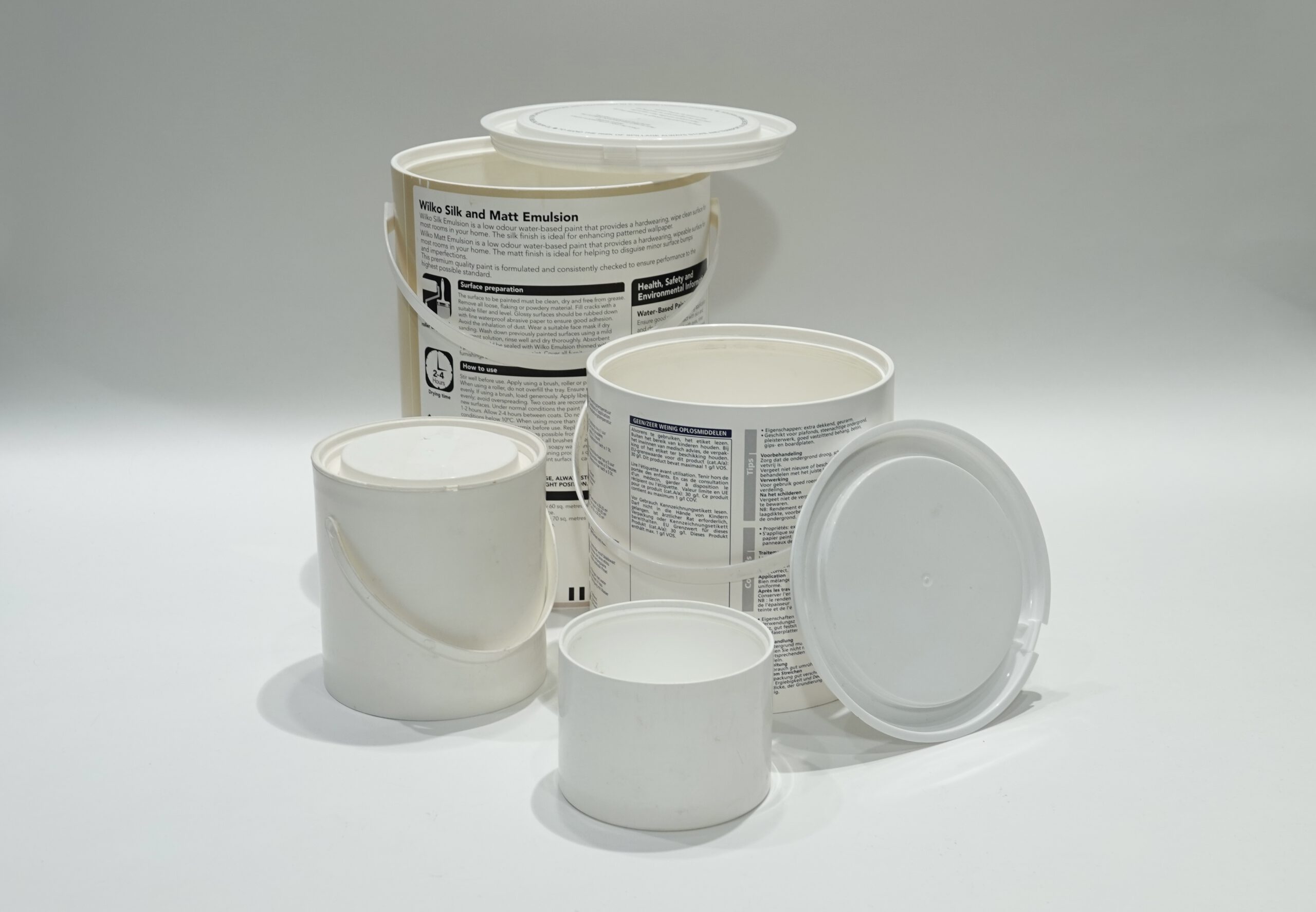

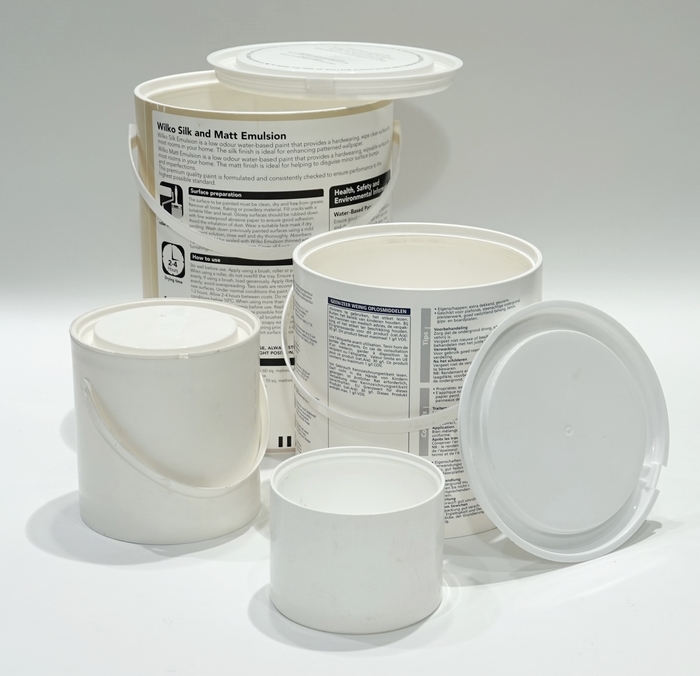

► Cylindrical straight bocans with their metallic counterpart.

b3

► Straight 3,5L bocan with tinting spout, iml and tamper evidence. Belongs to a double cavity  mould with integrated moulded handle. Weight bucket=150g / Weight lid=39g / Cycle time bucket + handle=12s including iml and take-off. Polypropylene copolymer mfi=36.

b2

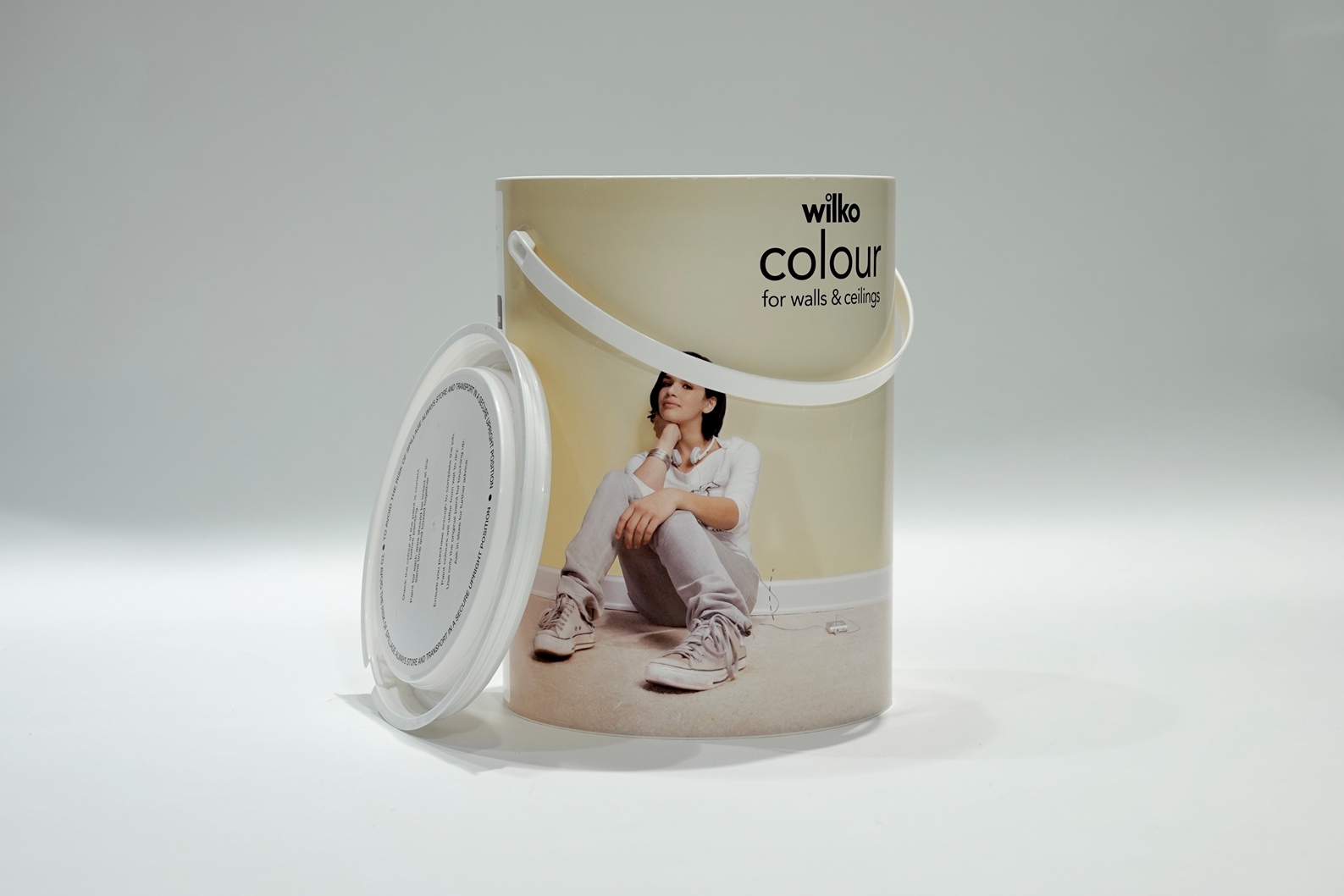

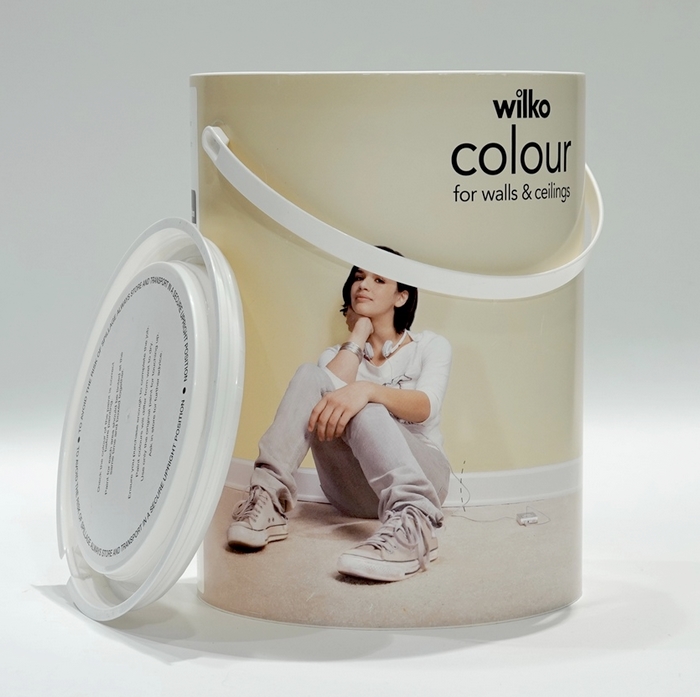

► 2,5L straigth bocan with IML. Four cavity mould cycle time=12s including iml and take-off. Weight bucket=180g / Wall thickness=1,45mm / PP copo mfi=36.

b5

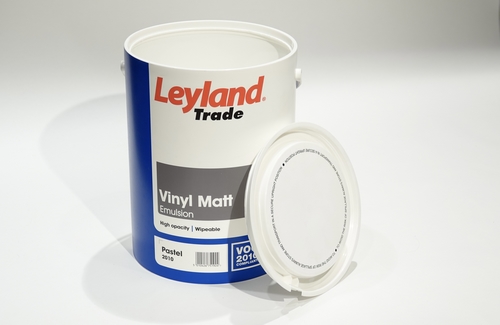

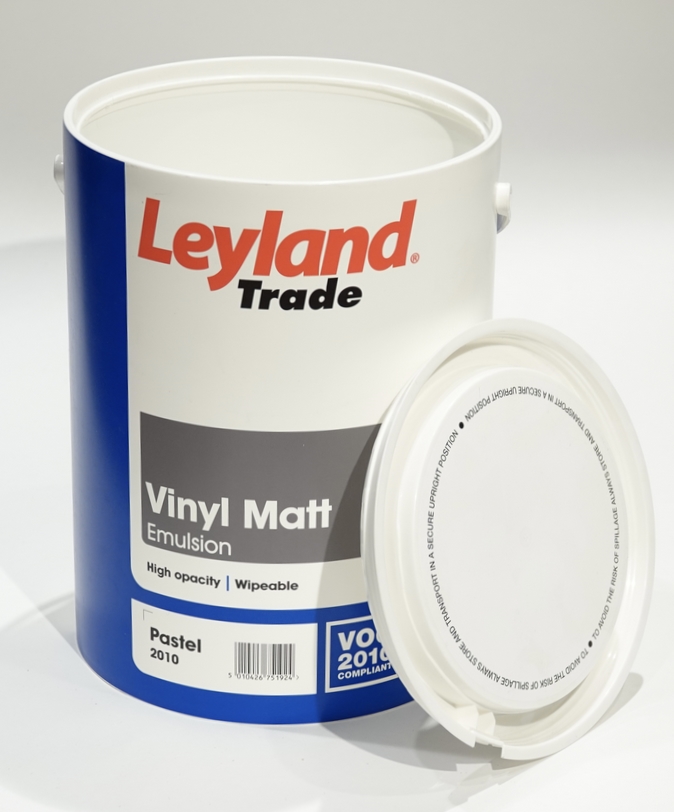

► 5L bocan with IML from a 4 cavity mould. Cycle time=12s / Weight bucket=180g / Weight lid=40g / Weight handle=8g. PP copo mfi=36.

b6

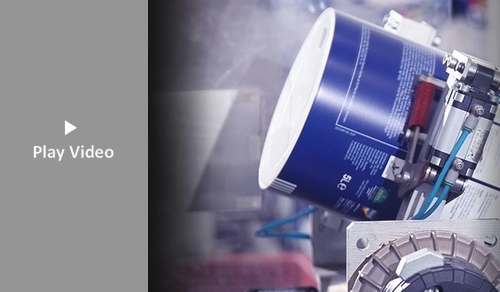

► Production cell for a 3,2L bocan straight container. IML and take-off robot running with a 2+2 cavity mould  (bucket+handle) in 12s cycle time. Injection machine 380tn.

bocan25a

► 2,5L straigth bocan with IML. Four cavity mould cycle time=12s including iml and take-off. Weight bucket=180g / Wall thickness=1,45mm / PP copo mfi=36.

Products details

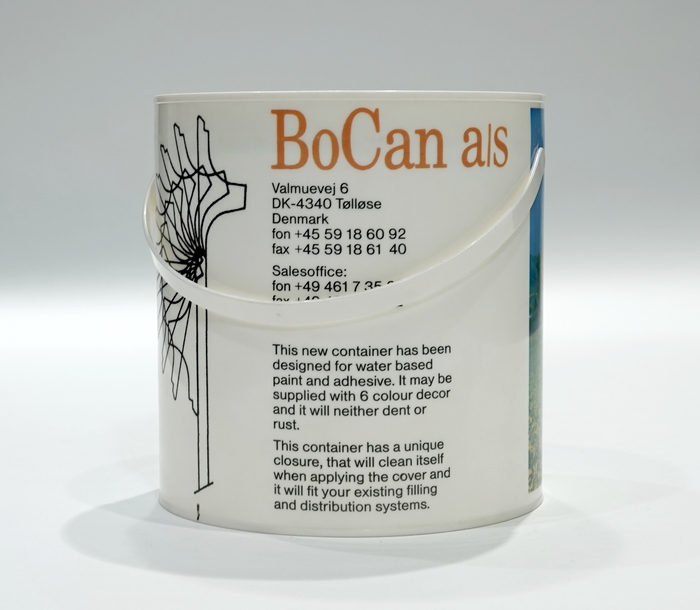

Flagship of our brand. The bocan straight container has been successfully marketed in many countries. This still innovative plastic can has become an awesome alternative to other production technologies to obtain a cylindrical fully decoratable container. This bucket is produced in one injection moulding shot (no need to mould the ring as it is integrated into the body, no welding). Simple, reliable and above all… cost effective. For sizes over 1.5L we can also provide our own technology for the handle dimple operation.

  • Application
  • Paint
  • Sizes
  • 0,5L – 8L (Øb = 80 – 240mm)
  • a = 60 to 280mm
  • Resin
  • PP copolymer (no available in hdpe)
  • Closure
  • Press fit / tool slot
  • Performance
  • Gasket-free H2O tight
  • Soft gasket string optional
  • Remarks
  • Looks alike metal cans
  • Suits the tinting systems
  • Video Licensee of BoCans

DESIGN PROTECTED / PATENTED
