Find out actual pictures of our projects

d1

► Detail of the pilfer evidence in a 10L DanTainer for paint. Weight bucket=380g / Weight lid=90g / Produced in PP copolymer mfi=30 / Average wall thickness bucket=1mm / Cycle time=12s without IML.

IML pail 10L

► Single cavity 10L DanTainer mould running with a side entry In Mould Labelling and take-off robot. Cycle time with IML=14s / Polypropylene heterophasic copolymer mfi=30.

d4

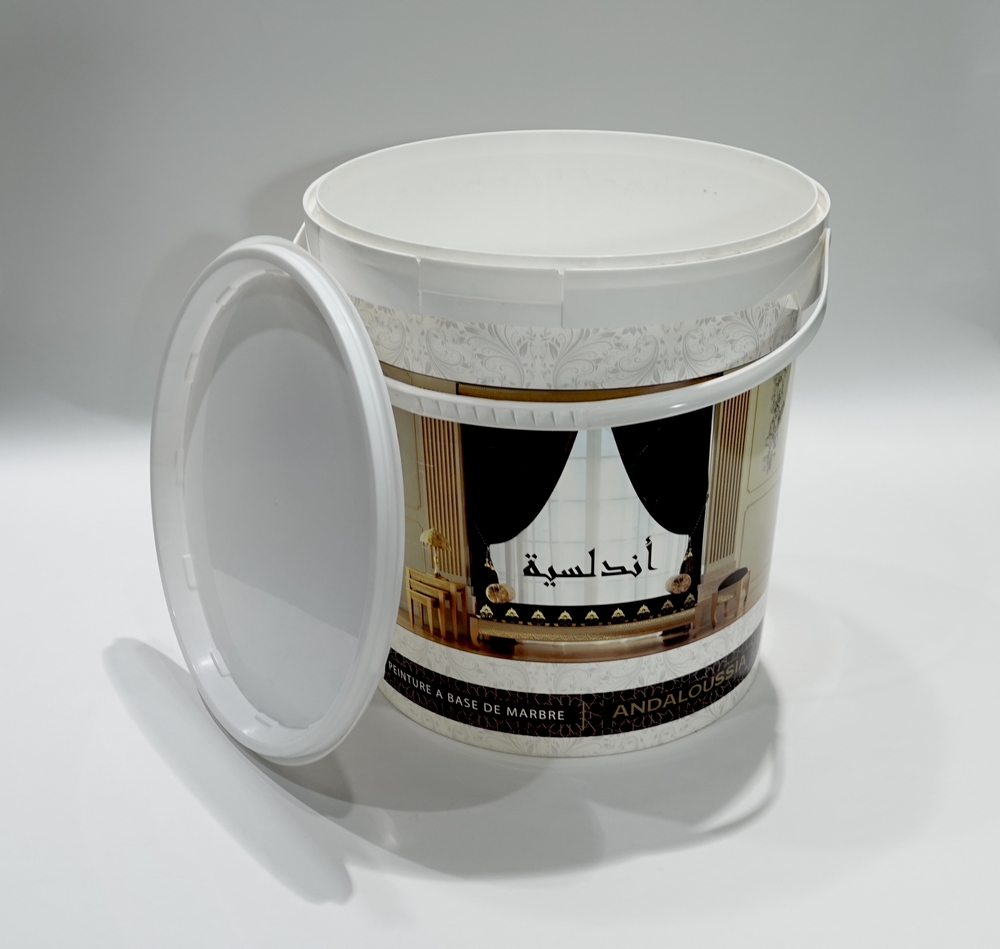

► Promotional In Mould Labelled 8L DanTainer pail for water based paint. Weight=430g / Wall thickness=1.4mm / Cycle time without IML=14s / Gasketfree water tight.

dt1.5L pic21

► This 1,5L DanTainer is produced in a 2 cavity mould with IML. Cycle time=7s / Wall thickness=0.65mm / Gasket free water tight / Optional handle.

1.5La

► Double cavity pail mould for the injection of the 1,5L bucket shown in the item 04. Cycle time=7s / Wall thickness=0.65mm / Gasket free water tight / Optional handle. Special construction to suit thinwall packaging several mould requirement.

dtmould

► Single cavity 10L DanTainer mould running with a side entry In Mould Labelling and take-off robot. Cycle time with IML=14s / Polypropylene heterophasic copolymer mfi=30.

Products details

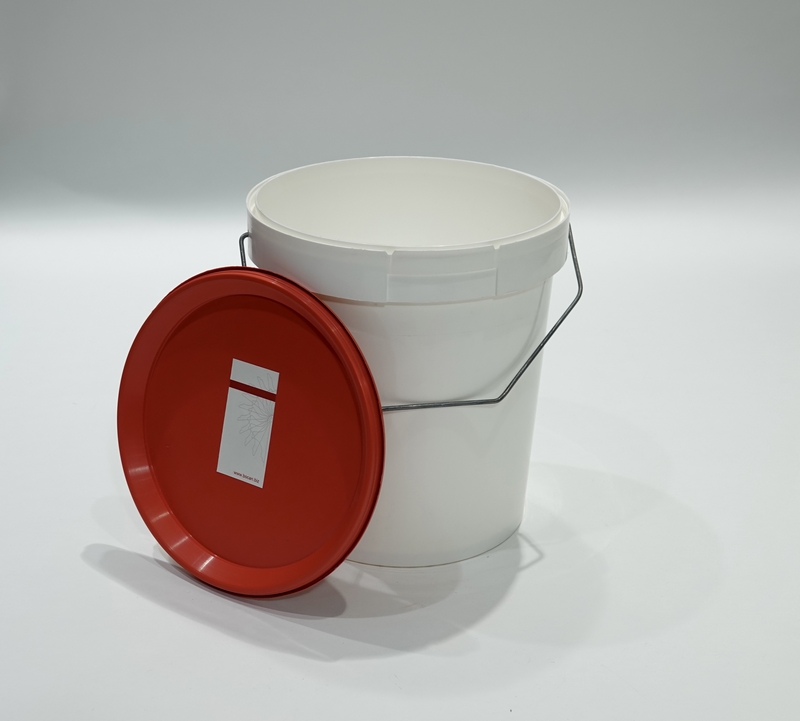

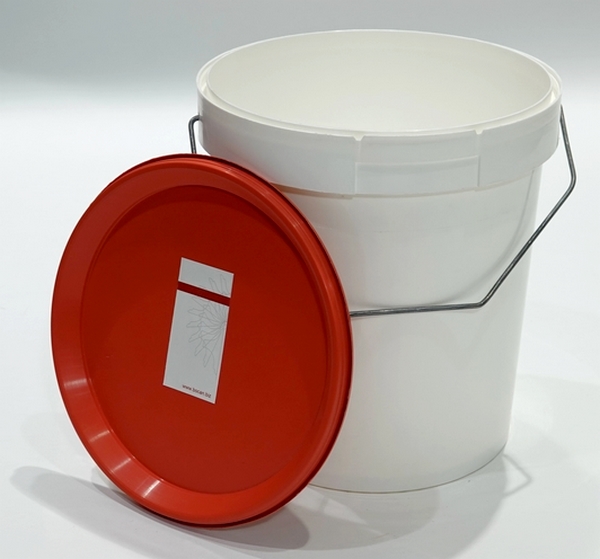

The secure inner closure profile makes it extremely tamper proof. The DanTainer has a flap in the top front face which has to fold down to get access for opening the lid. This mature design can be produced as light or medium weight and suits nicely the paint and chemical markets, especially when tightness guarantee is mostly required.

  • Application
  • Paint / Chemicals
  • Sizes
  • 300mL – 20L (Øb = 60 – 330mm)
  • a = 50 to 400mm
  • Resin
  • PP copolymer
  • Closure
  • Inner closure / folding flap
  • Performance
  • Gasket-free H2O tight
  • Drop from til 100cm
  • Remarks
  • High tamper proof
  • Clean and singular design
  • Metal and flexible or rigid plastic handles

DESIGN PROTECTED / PATENTED
