⇒ Performing features of each model in a scale 0-100%. This may guide you selecting the suitable container to match your market needs. Ask for extended info of each characteristic.
Find out more info▼
In this section, you will find a selection of pictures and short descriptions showcasing some of the designs we have created, along with a few examples of moulds and other related information. If you would like to explore any of these projects in greater detail or have specific questions, please don’t hesitate to reach out to us at bocan@bocan.biz
- 01. QuadTainer overview
- 02. Ready to roll position
- 03. Bucket mould detail
- 04. Lid mould detail 2 cav
- 05. FlipTop integrated ring
- 06. Flip-Top opened container

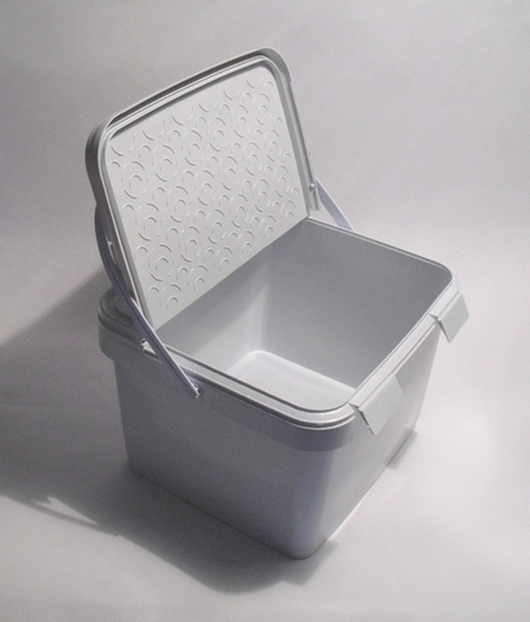

► Polypropylene 12L QuadTainer with flip-top lid. Also provided with a tinting spout in the fixed backside of the lid. Weight of bucket=420g / Weight of lid=110g / Cycle time bucket=12.5s / Injection machine for a 2 cavity mould 800tn. Design is patented in Mexico.
► QuadTainer flip-top in his user position. Fit the roller, wet it and roll it against the grid made under the lid. Easy. The lid engages with the handle in an angled position to optimize the use of the roller. Container is free-gasket water tight (patent).
► Double cavity mould for a 12L QuadTainer. Injection moulding machine 800tn / Cycle time=12.5s withou IML / CuBerilium parts for improved cooling.
► Twin cavity mould for a FlipTop QuadTainer lid for a 12L bucket. Double injection point per cavity for easier filling. Weight of lid=110g / Cycle time=12s / Injection moulding machine 500tn.

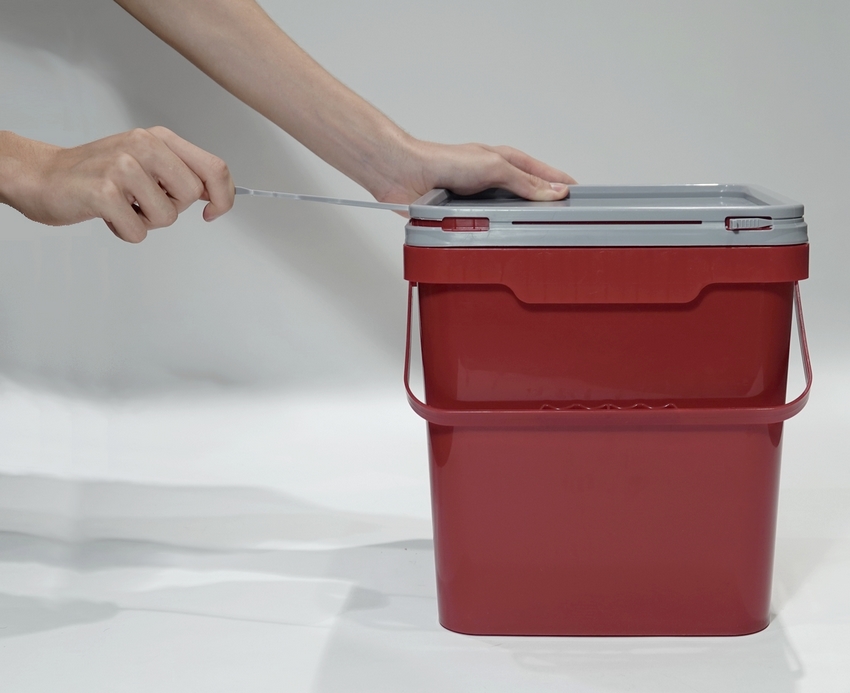

► Special Flip-Top QuadTainer with an integrated snap-on ring. The hinge is made inbetween the lid and the ring, hence the lid rotates from the backside of the container, leaving the widest space to access the content. A peel-off band is also integrated as a pilfer evidence.

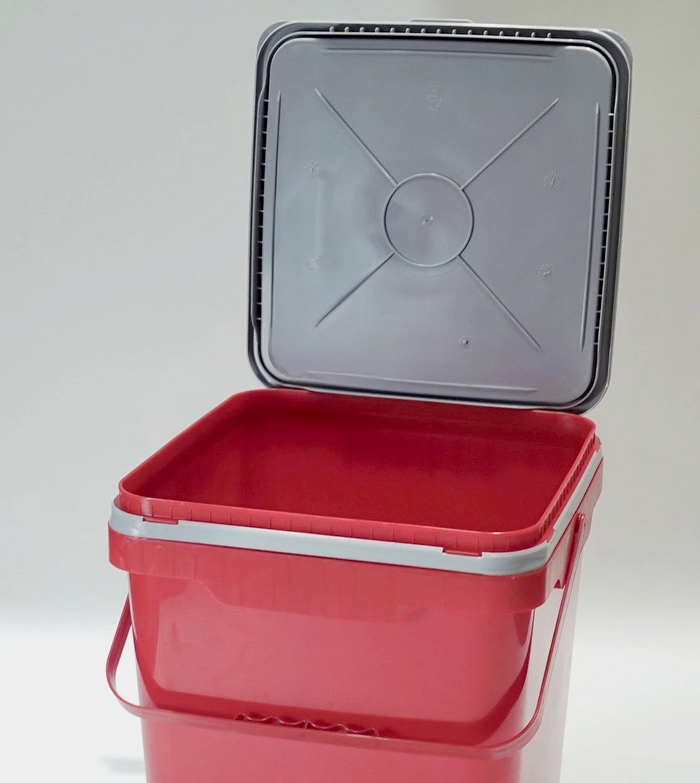

► In addition to previous picture, this one shows the lid in upright position after peeling off the band. Observe the ring stays attached to the container. The mould for the pail was made 1+1 cavities (pail + handle) and lid was made single cavity. Ask bocan@bocan.biz for further details.
